• Product Description:

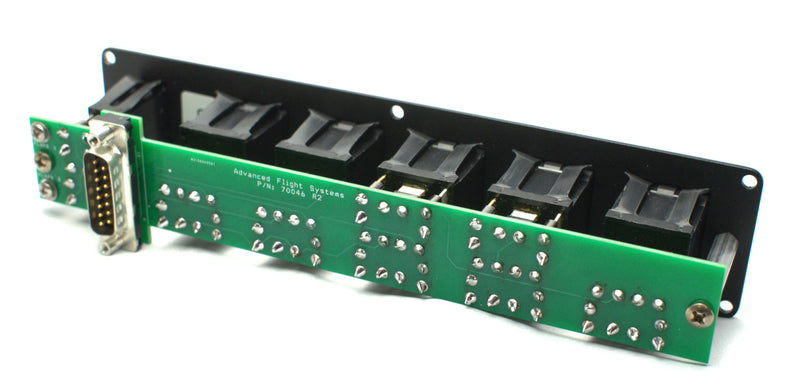

  Lower Switch Module - Narrow with Defrost. This switch module is the recommended option for RV-14 panels that will not be installing a Taxi light. There are many other aircraft applications this switch module would be applicable for.

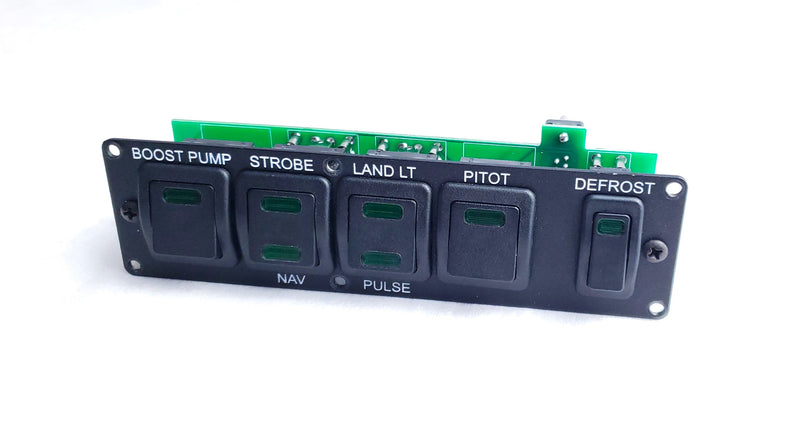

  • BOOST PUMP - Power the ACM's boost pump circuit.
  • STROBE / NAV
    STROBE = Strobe Lights + Nav Lights
    NAV = Nav Lights only (to protect night vision)
  • LAND LT / PULSE
    LAND LT = Landing Lights on solid (optionally auto-switch to pulse (wig-wag) based on airspeed)
    PULSE = "Wig-Wag" landing lights alternating Left/Right
  • PITOT - Power ACM's Pitot heat circuit
  • DEFROST - Powers circuit for 12V fans exhaust warm air from avionics bay onto windscreen.

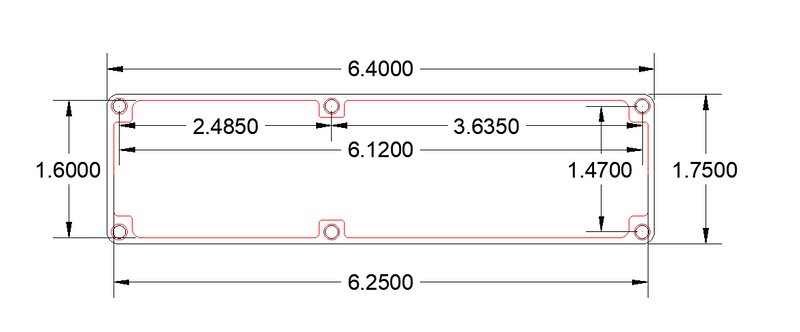

CAD Files

• .DXF
• .DWG

Compatibility:

This product is only compatible with SkyView HDX or AF-5000/6000 systems that include an Advanced Control Module.
