Product Description:

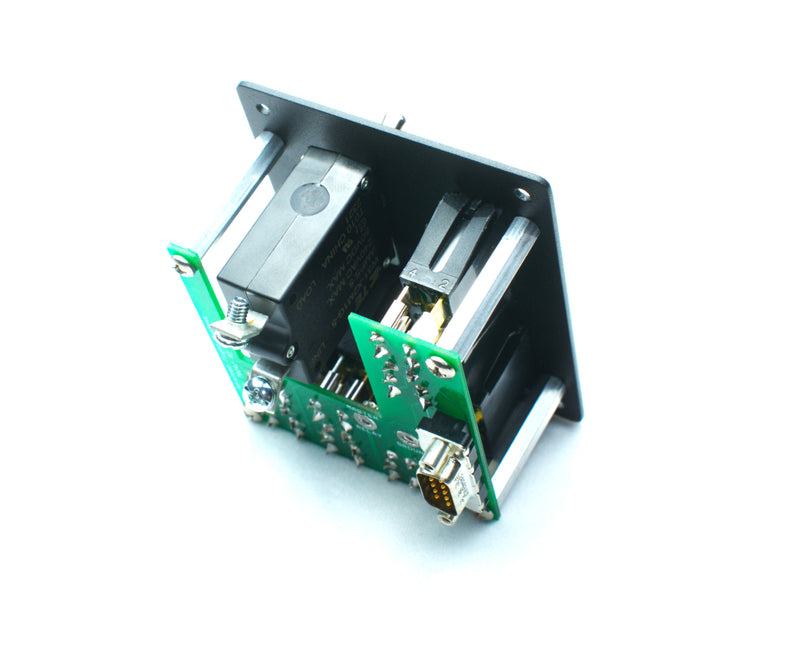

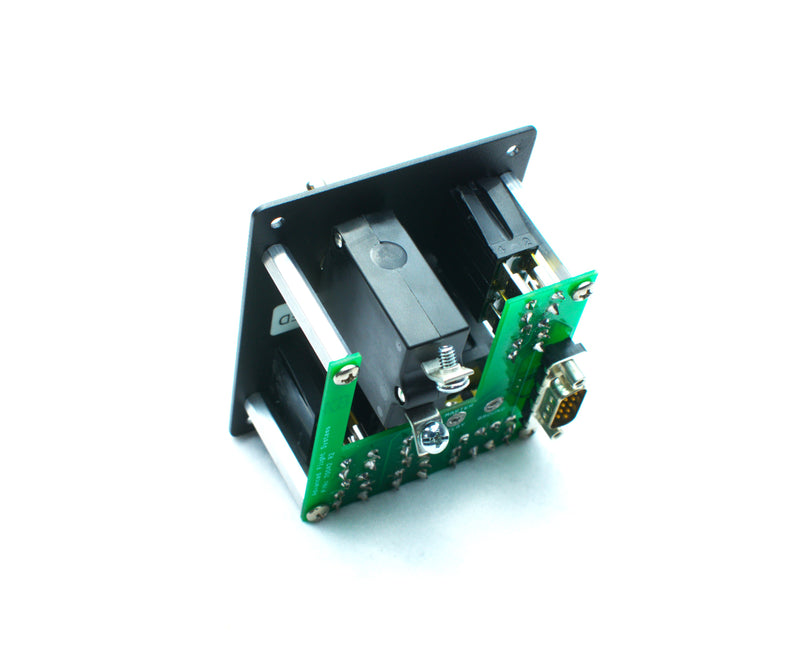

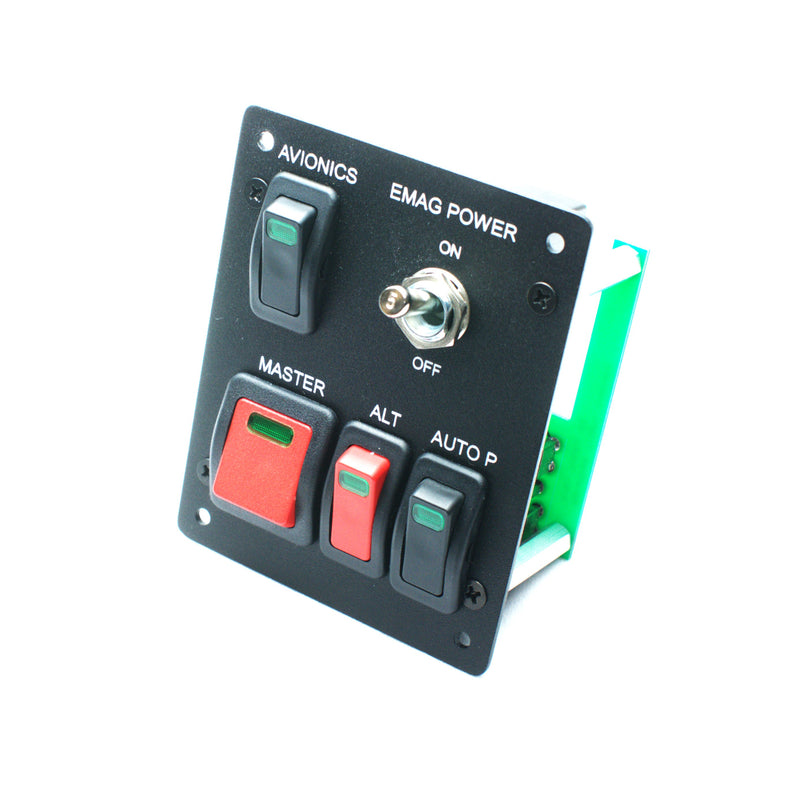

Master Switch Module - Single Emag. This is the recommended switch module for those using a single alternator and only one Emag ignition.
- Battery MASTER - Engages master contactor/solenoid
- ALT - Energizes primary alternator field
- AVIONICS - Powers ACM's Avionics Bus
- AUTOPILOT - Powers AP Servos through ACM.
- EMAG POWER - Breaker Toggle for ship-supplied power to the Emag
Options:
- 3a Breaker - 4 cylinder engines
- 5a Breaker - 6-cylinder engines

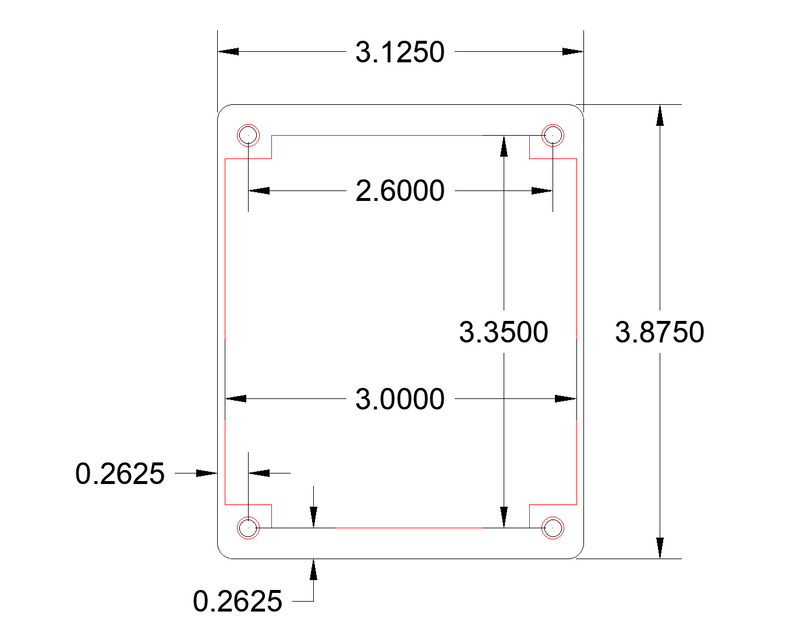

CAD Files
Compatibility:
This product is only compatible with SkyView HDX or AF-5000/6000 systems that include an Advanced Control Module.
