Product Description:

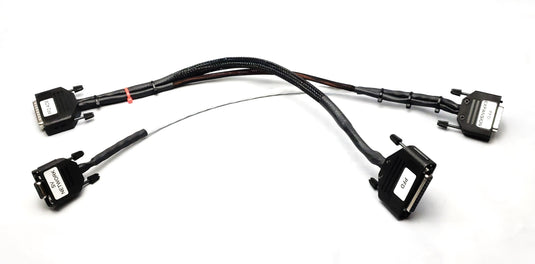

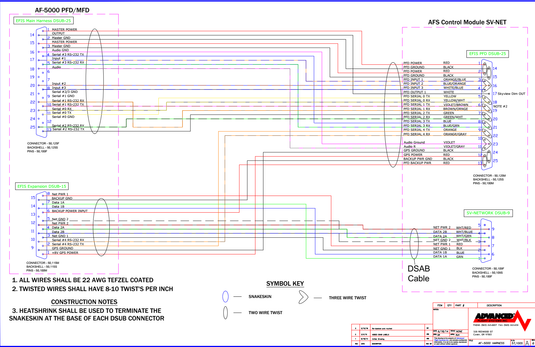

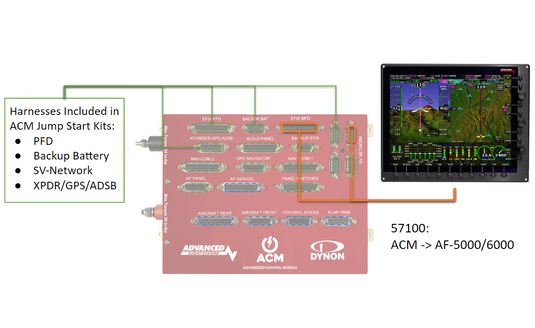

This is the harness needed to connect any AF-5000/6000 series EFIS to an ACM. This harness brings primary and backup power to the EFIS, as well as all RS-232 serial connections, SkyView Network Connections, and discrete inputs.
Compatibility
- Compatible with only with AF-5000/6000 EFISs using an ACM.
- Is not compatible with SkyView HDX.
Options
- 18" Ideal length for most applications with the ACM mounted directly behind the PFD.
- 24" Ideal lengths for centrally mounted ACM to reach the PFD or MFD.
- 36" Ideal length for reaching an MFD EFIS mounted on the opposite side of the panel from the ACM.
