• Product Description:

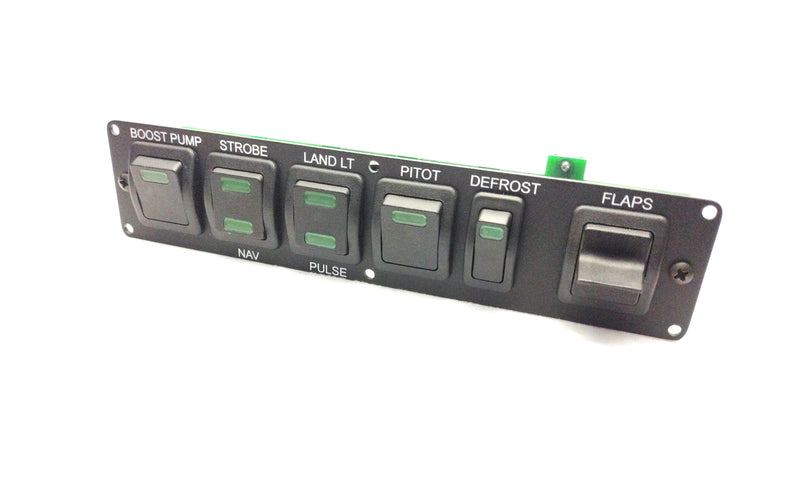

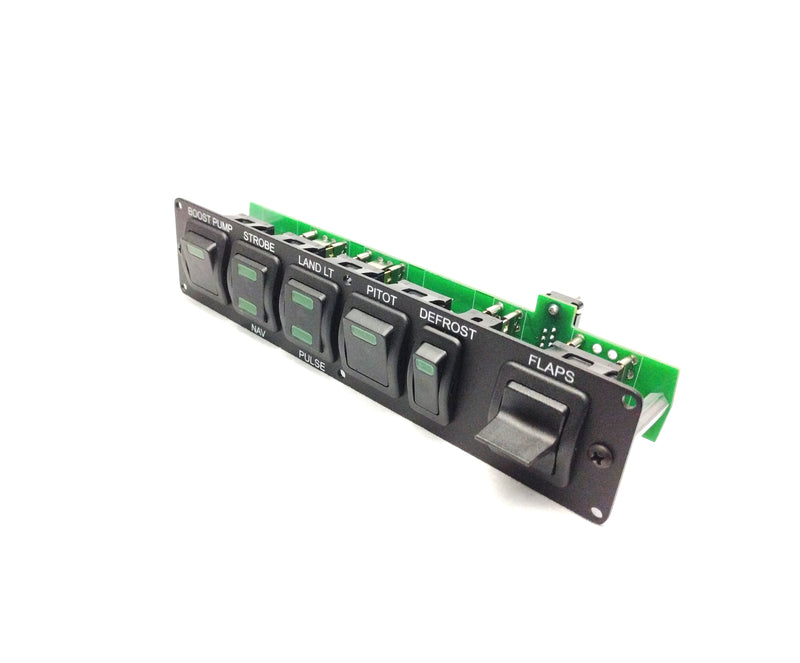

  Lower Switch Module - Wide with Defrost & Flaps. This switch module is the recommended option for panels that will be installing Defrost Fans, and will not have a separate flap switch on the panel or control stick

  • BOOST PUMP - Power the ACM's boost pump circuit.
  • STROBE / NAV
    STROBE = Strobe Lights + Nav Lights
    NAV = Nav Lights only (to protect night vision)
  • LAND LT / PULSE
    LAND LT = Landing Lights on solid (optionally auto-switch to pulse (wig-wag) based on airspeed)
    PULSE = "Wig-Wag" landing lights alternating Left/Right
  • PITOT - Power ACM's Pitot heat circuit
  • DEFROST - Power's ACM's circuit for 12V fans to exhaust warm air from the avionics bay onto the windscreen.
  • FLAPS - Momentary Up/Down switch that will control the flaps
    Deployment options - Momentary or Incremental (4 programmable position)
    Retract Options - Momentary, Incremental, or 1-touch full retract.

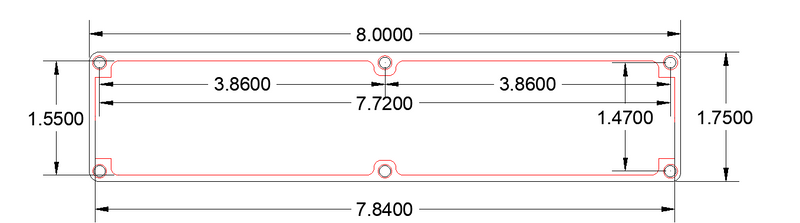

CAD Files

• .DXF
• .DWG

Compatibility:

This product is only compatible with SkyView HDX or AF-5000/6000 systems that include an Advanced Control Module.
