Product Description:
Included:

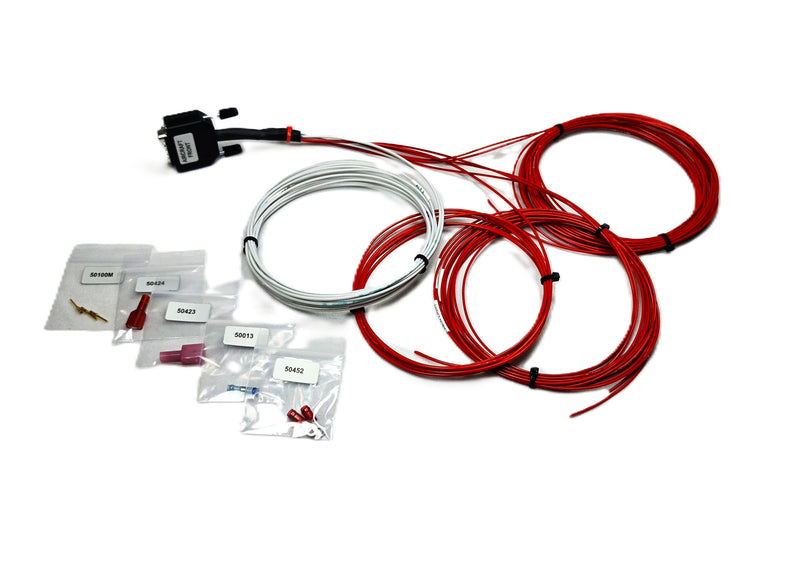

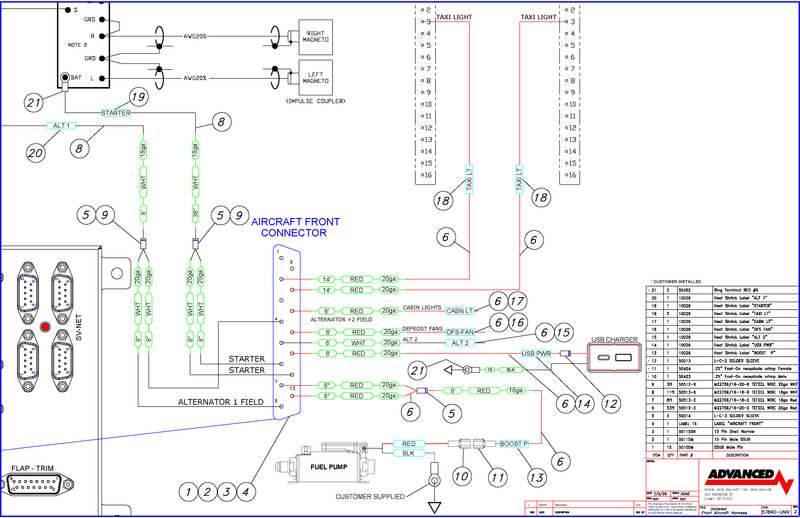

- ACM Aircraft Front connector harness (Boost Pump, Acc 12v, Keyswitch, Taxi Lights)
- Alternator #1 field power - 8'
- Alternator #2 field power - 6'
- Starter solenoid signal power - 3'
- Cabin Light(s) power - 6'
- Accessory / USB power - 6'
- Defrost / Avionics cooling fan power - 6'
- Taxi light power - 14'
Note for Rotax iS Series user's: The following functions are wired differently than this harness is intended. These circuits can be re-purposed for other functions as desired.
-
Rotax iS engines do not normally use ACM Alternator Field Circuits
- Alt #1 Field - 10a switch controlled circuit
- Alt #2 Field - 5a switch controlled circuit
-
Rotax iS engines provide power from the HIC connector(s) to engage the starter.
- Starter Solenoid signal wire - 10a 'Always alive' circuit
Airframe Harnesses are often built to order, please allow up to 5 business days for shipment.
Compatibility
- Compatible with AF-5000/6000
- Compatible with SkyView HDX
